Technical Data 技術參數(shù)

On the basis of GJB6242-2008 standard production, working temperature -55 ℃ ~ + 85 ℃

--依據(jù)GJB6242-2008標準生產，工作溫度-55℃~+85℃

A two-stage filter circuit is designed for military equipment to be designed through the requirements of CE102 in GJB151A / 152B

--采取兩級以上濾波電路，專門為軍用設備通過GJB151A/152B中CE102傳導發(fā)射的要求設計

Can meet the different rated current, rated voltage, fast customization

--能夠滿足不同額定電流、額定電壓，快速定制

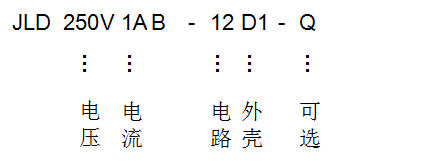

命名原則說明

Tabulates 產品列表

Model No.

Rated Current @40°C 額定電流

Terminal  Options*輸出方式

Bleeder  resistor(optional) 泄放電阻R(可選)

Electrical  Schematic 電路圖

Rated  Voltage(V)     額定電壓

Operating  Frequency(Hz) 工作頻率

型號

JLD250V1AB-12D1

1A

-

-

W

-

Fig.1

12~250V

DC

JLD250V3AB-12D1

3A

-

-

W

-

Fig.1

JLD250V6AB-12D1

6A

Q

S

W

-

Fig.1

JLD250V6AB-12D2

6A

Q

S

W

-

Fig.1

JLD250V8AB-12D2

8A

Q

S

-

-

Fig.1

JLD250V10AB-12D2

10A

Q

S

-

-

Fig.1

JLD250V15AB-12D3

15A

Q

S

-

-

Fig.1

JLD250V20AB-12D3

20A

Q

S

-

-

Fig.1

JLD250V30AB-12D3

30A

-

S

-

-

Fig.1

JLD250V40AB-12F1

40A

-

S

-

-

Fig.1

JLD250V50AB-12F2

50A

-

S

-

-

Fig.1

JLD250V60AB-12F2

60A

-

S

-

-

Fig.1

JLD250V100AB-12F3

100A

-

S

-

-

Fig.1

JLD250V200AB-12F3

200A

-

S

-

-

Fig.1

JLD250V1AB-28D3

1A

Q

S

W

/

Fig.2

JLD250V3AB-28D3

3A

Q

S

W

/

Fig.2

JLD250V6AB-28D3

6A

Q

S

-

/

Fig.2

JLD250V10AB-28D4

10A

Q

S

W

/

Fig.2

JLD250V15AB-28D4

15A

Q

S

-

/

Fig.2

JLD250V20AB-28D4

20A

Q

S

-

/

Fig.2

JLD250V30AB-28D5

30A

-

S

-

/

Fig.2

*Q: Fast-on 6.35x0.8mm      S: solder 4.0x0.8mm      W: Wire UL1015 18AWG

Electrical schematic 電路圖

Standard type


                                 Fig.1

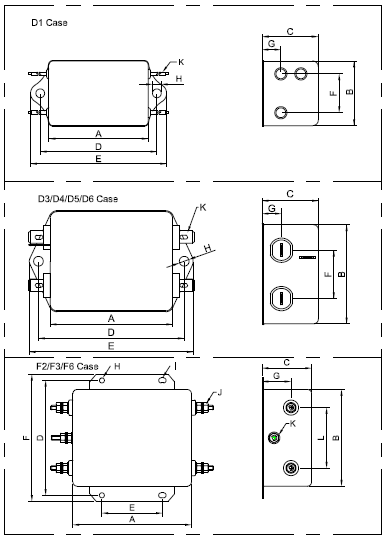

Mechanical Dimension外形圖(Unit: mm)

Insertion loss table(In 50ohm system according IEC/CISPR No.17)插入損耗(50歐姆測試系統(tǒng)，IEC/CISPR No.17)

 ——————    共模(common mode)             — — — — —   差模(differential mode)

                         12-1A                                                    12-3A

                          12-6A                                                    12-10A

                          12-15A                                                  12-20A

                          12-50A                                                  10-100A

                     28-1A                                                            28-3

                          28-6A                                                     28-10A
