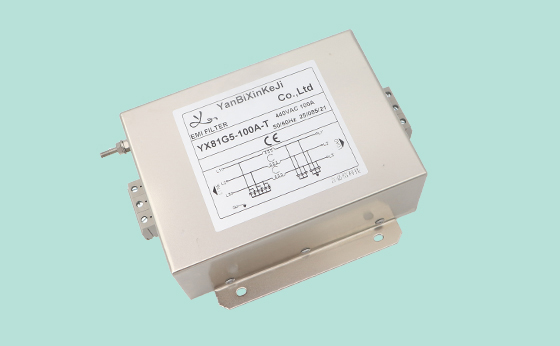

Approvals(認證):

Technical Data 技術參數

Features 產品特點

Protection against interference voltage from the maims

--防止干擾電壓

Easy connection terminal block, with safety protection

--新型端子臺，接線簡便，附安全保護蓋

Customized products according to customers' requirements

--可按客戶要求定制不同規格產品

Typical Applications 應用范圍

For photovoltaic systems and industrial applications

--光伏系統和工業應用

Three-phase motor drives

--三相電機

UPS/SMPS

--UPS/開關電源

Industrial automation equipment

--工業自動化設備

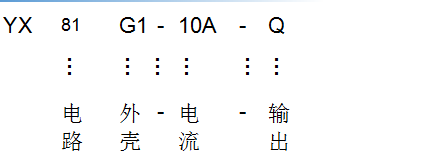

命名原則說明

Tabulates 產品列表

Model No.

Rated Current @40°C 額定電流

Terminal  Options* 輸出方式

Leakage current  440V/50Hz 漏電流

Electrical  Schematic 電路圖

Rated  Voltage(V) 額定電壓

Operating  Frequency(Hz) 工作頻率

型號

YX81G5-10A-T

10A

-

-

T

<1.0mA

Fig.1

250/440V

50/60Hz

YX81G5-20A-T

20A

-

-

T

Fig.1

YX81G5-30A-T

30A

-

-

T

Fig.1

YX81G5-40A-T

40A

-

-

T

Fig.1

YX81G5-50A-T

50A

-

-

T

Fig.1

YX81G5-60A-T

60A

-

-

T

Fig.1

YX81G5-80A-T

80A

-

-

T

<2.0mA

Fig.1

YX81G5-100A-T

100A

-

-

T

Fig.1

YX81G5-120A-T

120A

-

-

T

<5.0mA

Fig.1

YX81G5-160A-T

160A

-

-

T

Fig.1

*Q: Fast-on 6.35x0.8mm S: Screw lug T: Terminal block

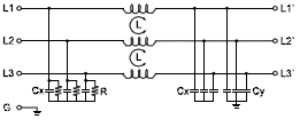

Electrical schematic 電路圖

Standard type

                         Fig.1

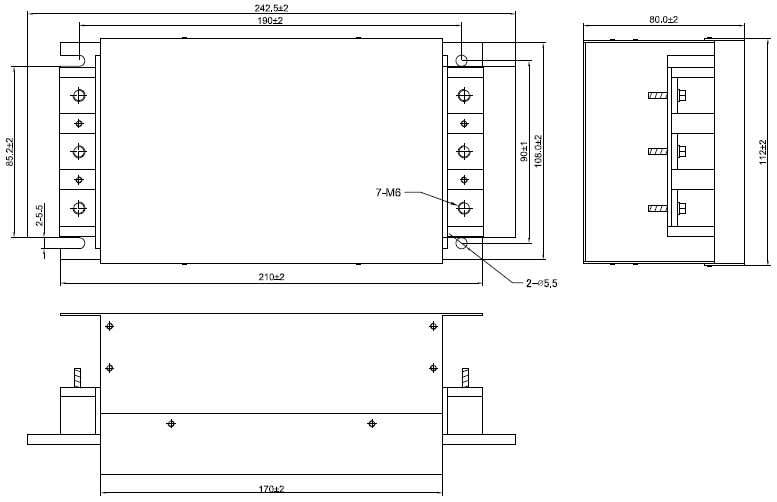

Mechanical Dimension外形圖(Unit: mm)

Insertion loss table(In 50ohm system according IEC/CISPR No.17)插入損耗(50歐姆測試系統，IEC/CISPR No.17)

——————    共模(common mode)             — — — — —   差模(differential mode)

                          6/10A                                                          20A

                           30A                                                           10/50A

                        100/200A
