Approvals(認證):

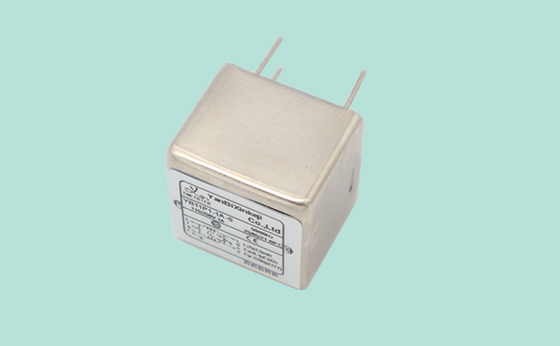

Technical Data 技術參數

Features 產品特點

Can be used to cover a broad range of usage and they offer a good size/amperage

--緊湊的體積，能夠應用在各種場合中。

PCB through hole mounting.

--PCB通孔安裝

There are a variety of parts and combinations to meet different customers' EMC tests

--有多種零件組合搭配，來滿足不同客戶整機EMC測試

Customized products according to customers' requirements

--可按客戶要求定制不同規格產品

Typical Applications 應用范圍

Electrical and electronic equipment

--電子電氣設備

Medical equipment

--醫療設備

Single-phase power supplies, switch-mode power supplies

--單相電源，開關模式電源

Small to medium-sized machines and?household equipment

--中小型機械設備和家用設備

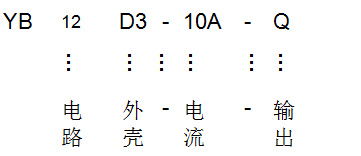

命名原則說明

Tabulates 產品列表

Model No.

Rated Current @40°C 額定電流

Terminal Options 輸出方式

Leakage current  250V/50Hz 漏電流

Electrical  Schematic 電路圖

Rated  Voltage(V)     額定電壓

Operating  Frequency(Hz) 工作頻率

型號

YB11P1-1A-S

1A

-

S

-

<0.8mA

Fig.1

115/250V

50/60Hz

YB11P1-3A-S

3A

-

S

-

Fig.1

YB11P1-6A-S

6A

-

S

-

Fig.1

YB11P2-1A-S

1A

-

S

-

Fig.1

YB11P2-3A-S

3A

-

S

-

Fig.1

YB11P2-6A-S

6A

-

S

-

Fig.1

YB11P3-1A-S

1A

-

S

-

Fig.1

YB11P3-3A-S

3A

-

S

-

Fig.1

YB11P3-6A-S

6A

-

S

-

Fig.1

YB12P3-1A-S

1A

-

S

-

Fig.2

YB12P3-3A-S

3A

-

S

-

Fig.2

YB12P3-6A-S

6A

-

S

-

Fig.2

醫療專用產品列表

Model No.

Rated Current @40°C 額定電流

Terminal Options 輸出方式

Medical equipment 醫療專用 5

Leakage current  250V/50Hz 漏電流

Electrical  Schematic 電路圖

Rated  Voltage(V)    額定電壓

Operating  Frequency(Hz) 工作頻率

型號

YB11P1-1A-S(5)

1A

-

S

-

5

<5μA

Fig.3

115/250V

50/60Hz

YB11P1-3A-S(5)

3A

-

S

-

5

Fig.3

YB11P1-6A-S(5)

6A

-

S

-

5

Fig.3

YB11P2-1A-S(5)

1A

-

S

-

5

Fig.3

YB11P2-3A-S(5)

3A

-

S

-

5

Fig.3

YB11P2-6A-S(5)

6A

-

S

-

5

Fig.3

YB11P3-1A-S(5)

1A

-

S

-

5

Fig.3

YB11P3-3A-S(5)

3A

-

S

-

5

Fig.3

YB11P3-6A-S(5)

6A

-

S

-

5

Fig.3

YB12P3-1A-S(5)

1A

-

S

-

5

Fig.4

YB12P3-3A-S(5)

3A

-

S

-

5

Fig.4

YB12P3-6A-S(5)

6A

-

S

-

5

Fig.4

        *Q: Fast-on 6.35x0.8mm   S: Pin Φ1.0mmW: Wire UL1015 18AWG

Electrical schematic 電路圖
 Standard type

                         Fig.1                                                       Fig.2

                           Fig.3                                                      Fig.4

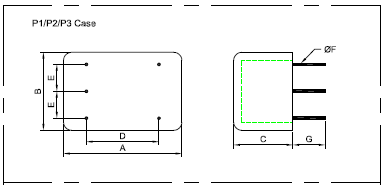

Mechanical Dimension外形圖(Unit: mm)

Insertion loss table(In 50ohm system according IEC/CISPR No.17)插入損耗(50歐姆測試系統，IEC/CISPR No.17)

——————    共模(common mode)             — — — — —   差模(differential mode)

                       11-1A                                                      11-3A

                      11-6A                                                              37-1A

                     37-3A                                                             37-6A
