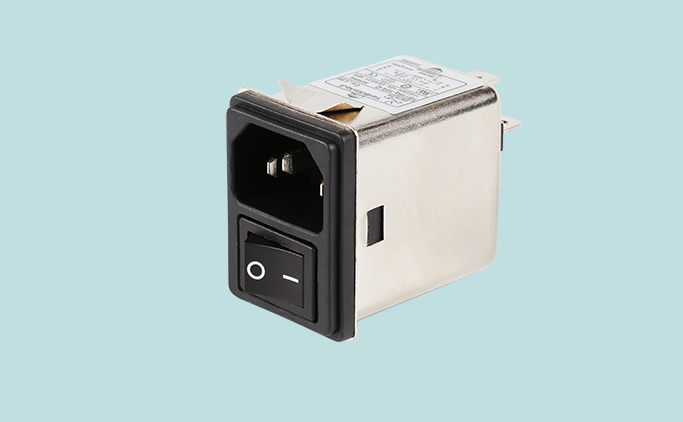

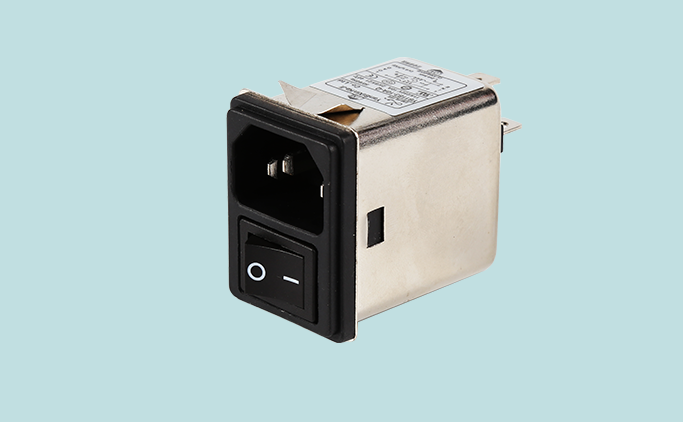

Technical Data 技術參數

Versions to 10A are available with fuse holder for one or two (5*20mm) fuses

--最高達到10A有一個或兩個(5*20mm)保險絲

There are a variety of parts and combinations to meet different customers' EMC tests

--有多種零件組合搭配，來滿足不同客戶整機EMC測試

Customized products according to customers' requirements

--可按客戶要求定制不同規格產品

Typical Applications 應用范圍

Portable electrical and electronic equipment

--便攜式電器和電子設備

Medical equipment

--醫療設備

Test and measurement equipment

--測量測試設備

Small to medium-sized machines and household equipment

--中小型機械設備和家用設備

Single-phase power supplies,switch-mode power supplies

--單相電源，開關電源

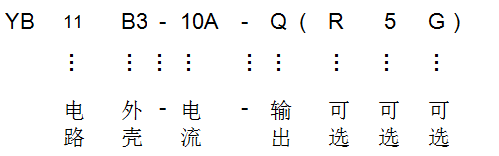

命名原則說明

Model No.

Rated Current @40°C 額定電流

Terminal  Options* 輸出方式

Bleeder resistor (optional) 泄放電阻R(可選)

接地電感 G(可選)

Leakage current  250V/50Hz 漏電流

Electrical  Schematic 電路圖

Rated  Voltage(V)   額定電壓

Operating  Frequency(Hz) 工作頻率

型號

YB11B3-1A

1A

Q

S

-

-

-

<0.8mA

Fig.1

115/250V

50/60Hz

YB11B3-2A

2A

Q

S

-

-

-

Fig.1

YB11B3-3A

3A

Q

S

-

-

-

Fig.1

YB11B3-4A

4A

Q

S

-

-

-

Fig.1

YB11B3-6A

6A

Q

S

-

-

-

Fig.1

YB11B3-8A

8A

Q

S

-

-

-

Fig.1

YB11B3-10A

10A

Q

S

-

-

-

Fig.1

醫療專用產品列表

Model No.

Rated Current @40°C 額定電流

Terminal  Options 輸出方式

Bleeder resistor (optional) 泄放電阻R(MΩ)

Medical equipment 醫療專用 5

接地電感 G

Leakage current  250V/50Hz 漏電流

Electrical  Schematic 電路圖

Rated  Voltage(V)     額定電壓

Operating  Frequency(Hz) 工作頻率

型號

YB11B3-1A-x(R5)

1A

Q

S

-

1

5

-

<5μA

Fig.4

115/250V

50/60Hz

YB11B3-2A-x(R5)

2A

Q

S

-

1

5

-

Fig.4

YB11B3-3A-x(R5)

3A

Q

S

-

1

5

-

Fig.4

YB11B3-4A-x(R5)

4A

Q

S

-

1

5

-

Fig.4

YB11B3-6A-x(R5)

6A

Q

S

-

1

5

-

Fig.4

YB11B3-8A-x(R5)

8A

Q

S

-

1

5

-

Fig.4

YB11B3-10A-x(R5)

10A

Q

S

-

1

5

-

Fig.4

          *Q: Fast-on 6.35x0.8mm      S: solder 4.0x0.8mm      W: Wire UL1015 18AWG

Electrical schematic 電路圖

                            Standard type                                                   Lg typ

                                 Fig.1                                                                Fig.2

                              B3S type                                                              R5 type

                                   Fig.3                                                                   Fig.4

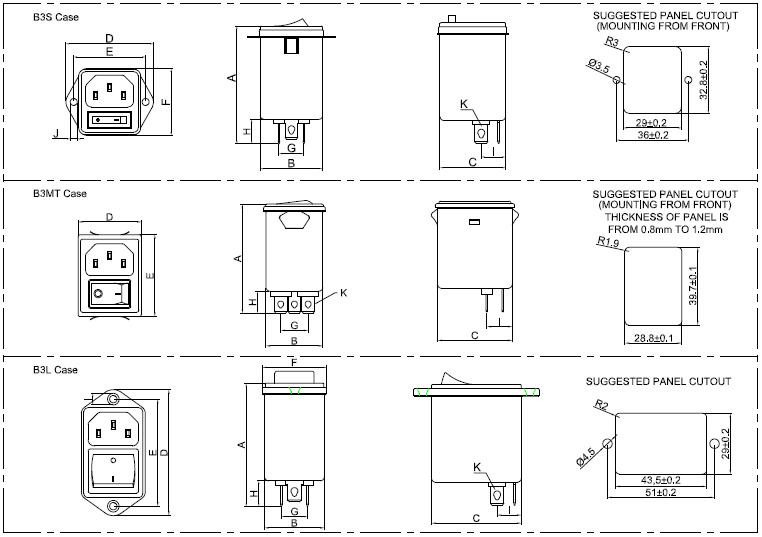

Mechanical Dimension外形圖(Unit: mm)

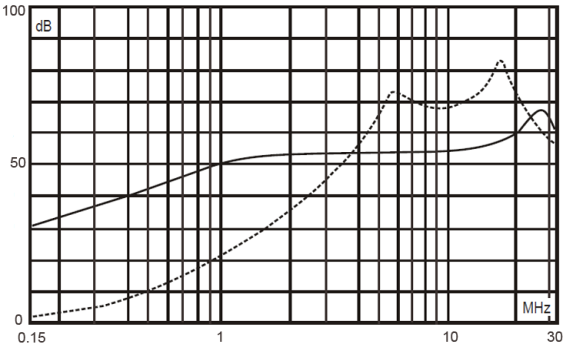

Insertion loss table(In 50ohm system according IEC/CISPR No.17)插入損耗(50歐姆測試系統，IEC/CISPR No.17)

 ——————    共模(common mode)             — — — — —   差模(differential mode)

                                       1A                                                                            3A

                                       6A                                                                             8A

                                       10A
