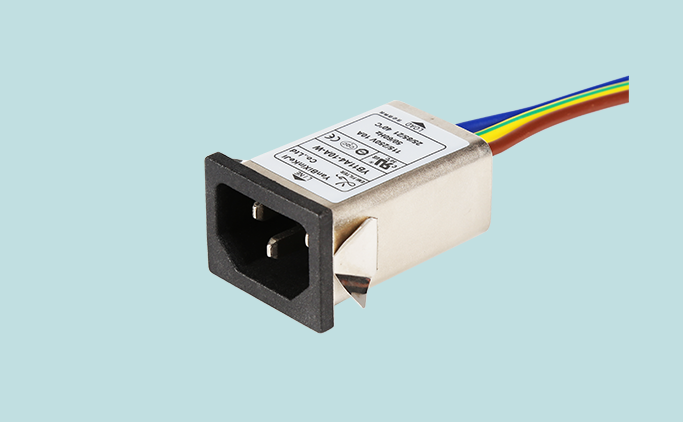

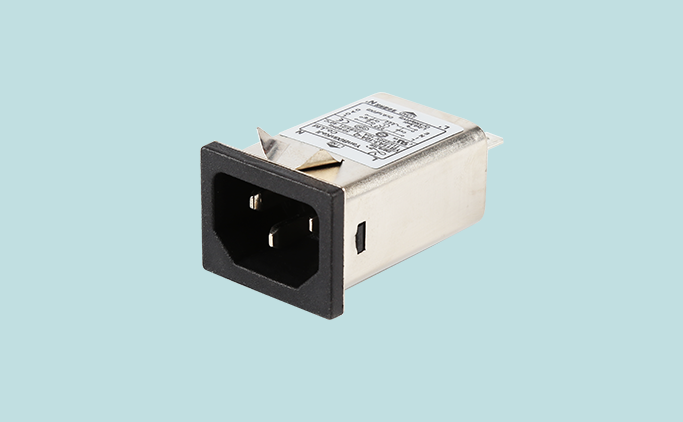

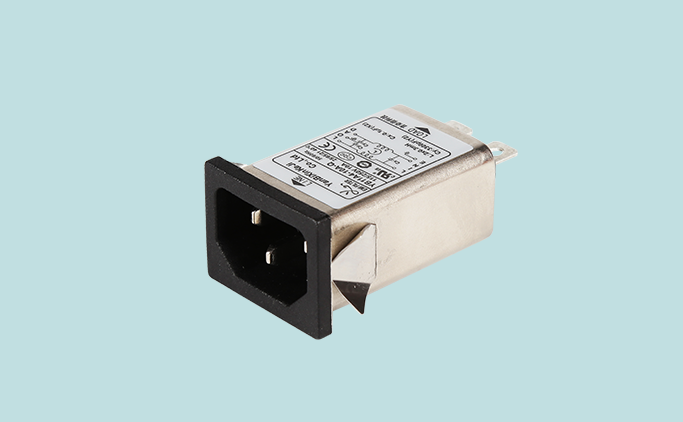

High performance and high attenuation power filters with IEC 320 socket
--帶IEC320插座高性能,高衰減電源濾波器
(R5) types comply with the requirements of IEC/EN60601-1 for creepage and clearance, leakage current
and high potential testing.
--(R5)醫療專用產品依據IEC/EN60601-1標準對安全間隙，低漏電流和超高耐壓要求設計。
There are a variety of parts and combinations to meet different customers' EMC tests
--有多種零件組合搭配，來滿足不同客戶整機EMC測試
Customized products according to customers' requirements
--可按客戶要求定制不同規格產品

Typical Applications 應用范圍

Specially designed for LCD and PDP TV,medical applications,general electrical appliances.

--專門為LCD，PDP，醫療儀器，電源設備而設計

Medical equipment

--醫療設備

Test and measurement equipment

--測量測試設備

Small to medium-sized machines and household equipment

--中小型機械設備和家用設備

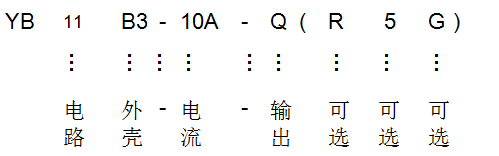

命名原則說明

Tabulates 產品列表

Model No.

Rated Current @40°C 額定電流

Terminal  Options* 輸出方式

Bleeder resistor (optional) 泄放電阻R(可選)

接地電感 G(可選)

Leakage current  250V/50Hz 漏電流

Electrical  Schematic 電路圖

Rated  Voltage(V) 額定電壓

Operating  Frequency(Hz) 工作頻率

型號

YB11A3-1A

1A

Q

S

W

-

-

<0.8mA

Fig.1

115/250V

50/60Hz

YB11A3-2A

2A

Q

S

W

-

-

Fig.1

YB11A3-3A

3A

Q

S

W

-

-

Fig.1

YB11A3-4A

4A

Q

S

W

-

-

Fig.1

YB11A3-6A

6A

Q

S

W

-

-

Fig.1

YB11A3-8A

8A

Q

S

W

-

-

Fig.1

YB11A3-10A

10A

Q

S

W

-

-

Fig.1

YB11A3-15A

15A

Q

S

W

-

-

Fig.1

YB11A4-1A

1A

Q

S

W

-

-

Fig.1

YB11A4-2A

2A

Q

S

W

-

-

Fig.1

YB11A4-3A

3A

Q

S

W

-

-

Fig.1

YB11A4-4A

4A

Q

S

W

-

-

Fig.1

YB11A4-6A

6A

Q

S

W

-

-

Fig.1

YB11A4-8A

8A

Q

S

W

-

-

Fig.1

YB11A4-10A

10A

Q

S

W

-

-

Fig.1

YB11A4-15A

15A

Q

S

W

-

-

Fig.1

醫療專用產品列表

Model No.

Rated  Current @40°C 額定電流

Terminal Options 輸出方式

Bleeder resistor (optional) 泄放電阻R(MΩ)

Medical  equipment 醫療專用 5

接地電感 G

Leakage current  250V/50Hz 漏電流

Electrical  Schematic 電路圖

Rated  Voltage(V) 額定電壓

Operating  Frequency(Hz) 工作頻率

型號

YB11A3-1A-x(R5)

1A

Q

S

W

1

5

-

<5μA

Fig.2

115/250V

50/60Hz

YB11A3-2A-x(R5)

2A

Q

S

W

1

5

-

Fig.2

YB11A3-3A-x(R5)

3A

Q

S

W

1

5

-

Fig.2

YB11A3-4A-x(R5)

4A

Q

S

W

1

5

-

Fig.2

YB11A3-6A-x(R5)

6A

Q

S

W

1

5

-

Fig.2

YB11A3-8A-x(R5)

8A

Q

S

W

1

5

-

Fig.2

YB11A3-10A-x(R5)

10A

Q

S

W

1

5

-

Fig.2

YB11A3-15A-X(R5)

15A

Q

S

W

1

5

-

Fig.2

     *Q: Fast-on 6.35x0.8mm     S: solder 4.0x0.8mm      W: Wire UL1015 18AWG

Electrical schematic 電路圖

                   Standard type                                               R5 type

                         Fig.1                                                         Fig.2

                        Lg type

                        Fig.3

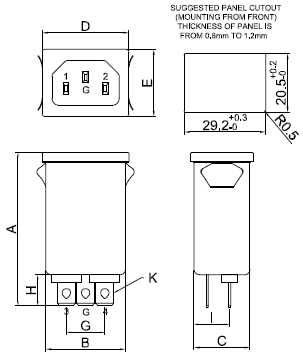

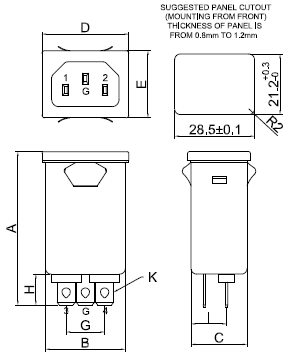

Mechanical Dimension外形圖(Unit: mm)

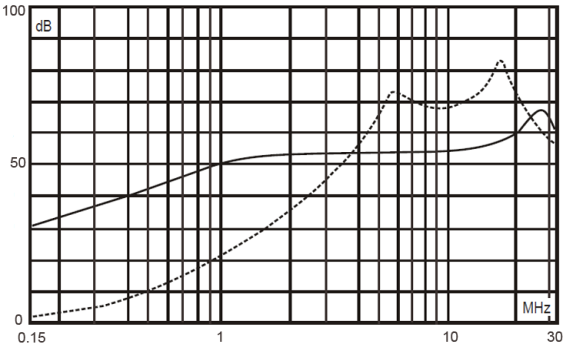

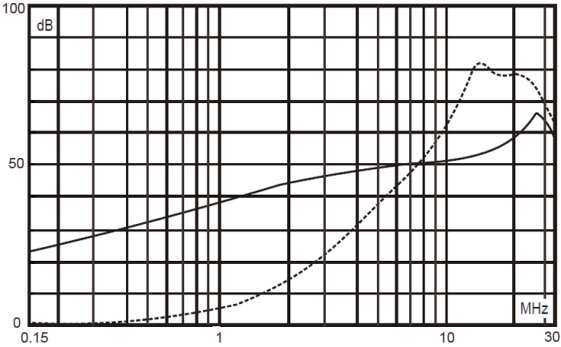

Insertion loss table(In 50ohm system according IEC/CISPR No.17)插入損耗(50歐姆測試系統，IEC/CISPR No.17)

 ——————    共模(common mode)             — — — — —   差模(differential mode)

                                       1A                                                                            3A

                                       6A                                                                             8A

                                       10A                                                                         15A
