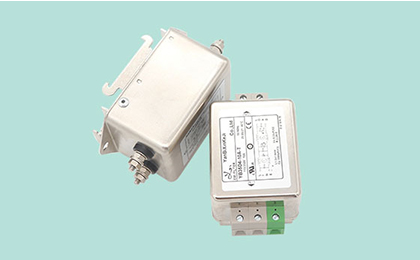

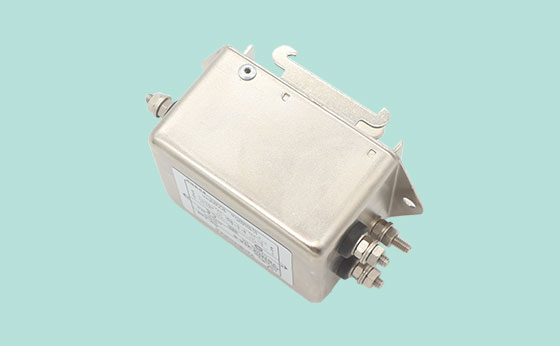

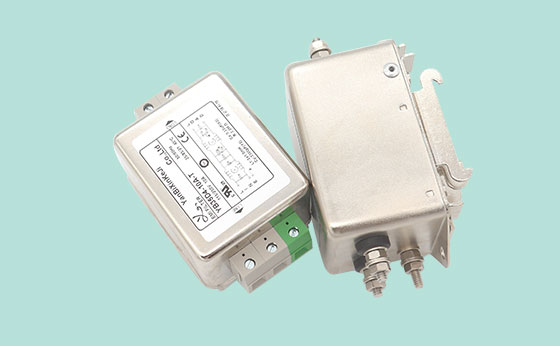

Technical Data 技術參數

Features 產品特點

Protection against interference voltage from the mains Possible interferences generated in the equipment are strongly attenuated 2-stage line filter with increased attenuation

--防止干擾電壓的電源可能產生對設備的干擾，設計了2級濾波加強衰減。

Various terminal options allow you to select the desired connection style.

--有多種端子類型可供選擇

There are a variety of parts and combinations to meet different customers' EMC tests

--有多種零件組合搭配，來滿足不同客戶整機EMC測試

Customized products according to customers' requirements

--可按客戶要求定制不同規格產品

Typical Applications 應用范圍

Small to medium-sized machines and industrial equipment

--中小型機械和工業設備

Single-phase variable speed motor drives,inverters and converters

--單相變速電機驅動器、逆變器和轉換器

DIN-rail filter versions are ideal for panel building and electrical cabinets

--導軌濾波器專門用在平板安裝和電器柜

Office automation and datacom equipment

--辦公自動化設備和數據通訊設備

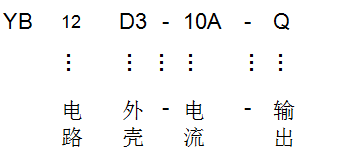

命名原則說明

Tabulates 產品列表

Model No.

Rated Current @40°C 額定電流

Terminal Options* 輸出方式

Leakage current  250V/50Hz 漏電流

Electrical  Schematic 電路圖

Rated  Voltage(V)     額定電壓

Operating  Frequency(Hz) 工作頻率

型號

YB12D3-20A

20A

Q

S

T

<0.8mA

Fig.1

115/250V

50/60Hz

YB12D4-30A

30A

-

S

T

Fig.1

YB12F3-50A

50A

-

S

T

Fig.1

YB35D3-8A

8A

Q

S

T

<1.6mA

Fig.2

YB35D3-10A

10A

Q

S

T

Fig.2

YB35D3-15A

15A

Q

S

T

Fig.2

YB35D4-10A

10A

Q

S

T

Fig.2

YB35D4-15A

15A

Q

S

T

Fig.2

YB35D4-20A

20A

Q

S

T

Fig.2

YB35D5-15A

15A

Q

S

T

Fig.2

YB35D5-20A

20A

Q

S

T

Fig.2

YB35D5-30A

30A

-

S

T

Fig.2

YB35D6-20A

20A

-

S

T

Fig.2

YB35D6-30A

30A

-

S

T

Fig.2

YB35F1-20A

20A

-

S

T

Fig.2

YB35F1-30A

30A

-

S

T

Fig.2

YB35F2-30A

30A

-

S

T

Fig.2

YB35F2-40A

40A

-

S

T

Fig.2

YB35F2-50A

50A

-

S

T

Fig.2

YB35F3-50A

50A

-

S

T

Fig.2

*Q: Fast-on 6.35x0.8mm S: Screw lug T: Terminal block

Electrical schematic 電路圖

                         Fig.1                                                                       Fig.2

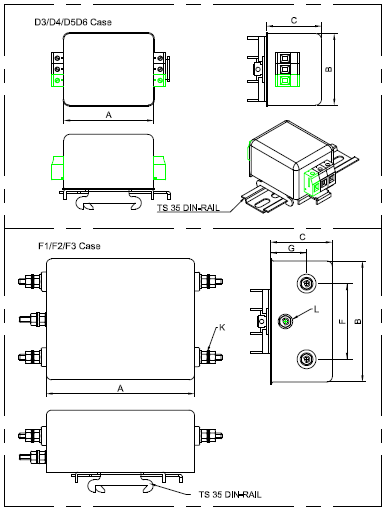

Mechanical Dimension外形圖(Unit: mm)

Insertion loss table(In 50ohm system according IEC/CISPR No.17)插入損耗(50歐姆測試系統，IEC/CISPR No.17)

——————    共模(common mode)             — — — — —   差模(differential mode)

                              8A                                                             10A

                             20A                                                             30A
